Screen Loads

Learn how to monitor your mobile application's performance by using Screen Loads to get better visibility on your application's TTID and TTFD performance.

This feature is available only if your organization is on a Business or Enterprise plan.

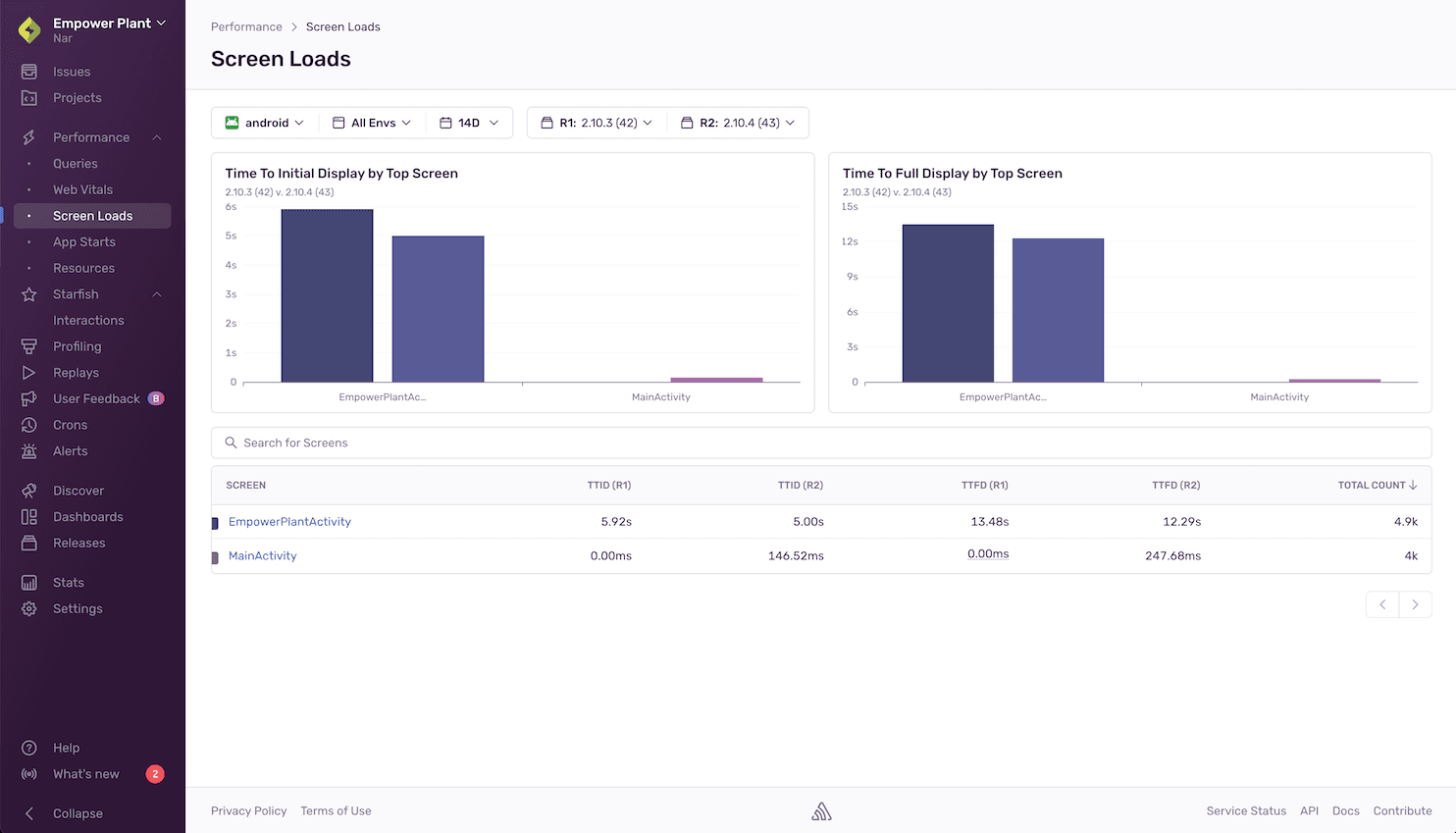

Example of Screen Loads

The Screen Loads page shows an overview of the amount of time it takes for your application to load its screens. It helps you identify slow or regressed screens and gives additional information so you can better understand the factors contributing to the slowness of both time to initial display (TTID) and time to full display (TTFD).

Sentry tracks TTID automatically, but TTFD requires that the reportFullyDisplayed() API be manually called to report that the screen has loaded all of its content and is fully displayed.

For Android:

  • >=5.0 for automatic activity transactions
  • >=6.10.0 for TTID
  • >=6.17.0 for TTFD, (released March, 2023)

For iOS:

  • >=7.12.0 for UIViewController transactions
  • >=8.4.0 for TTID+TTFD, (released April, 2023)

For Flutter:

For React Native:

By default, the Screen Loads page displays metrics for the two releases with the highest screen counts for the time range you’ve selected. To choose a different set of releases to compare, use the “release selector” at the top of the page.

The charts section shows a comparison of TTID and TTFD for your top five screens across your two selected releases.

The sortable table below shows a list of your application's screens with the average TTID and TTFD for each release.

Reasons Why You Might Not Be Seeing Any Data:

  • You don’t have any transactions with op ui.load
  • Your SDKs don’t meet the minimum SDK requirements

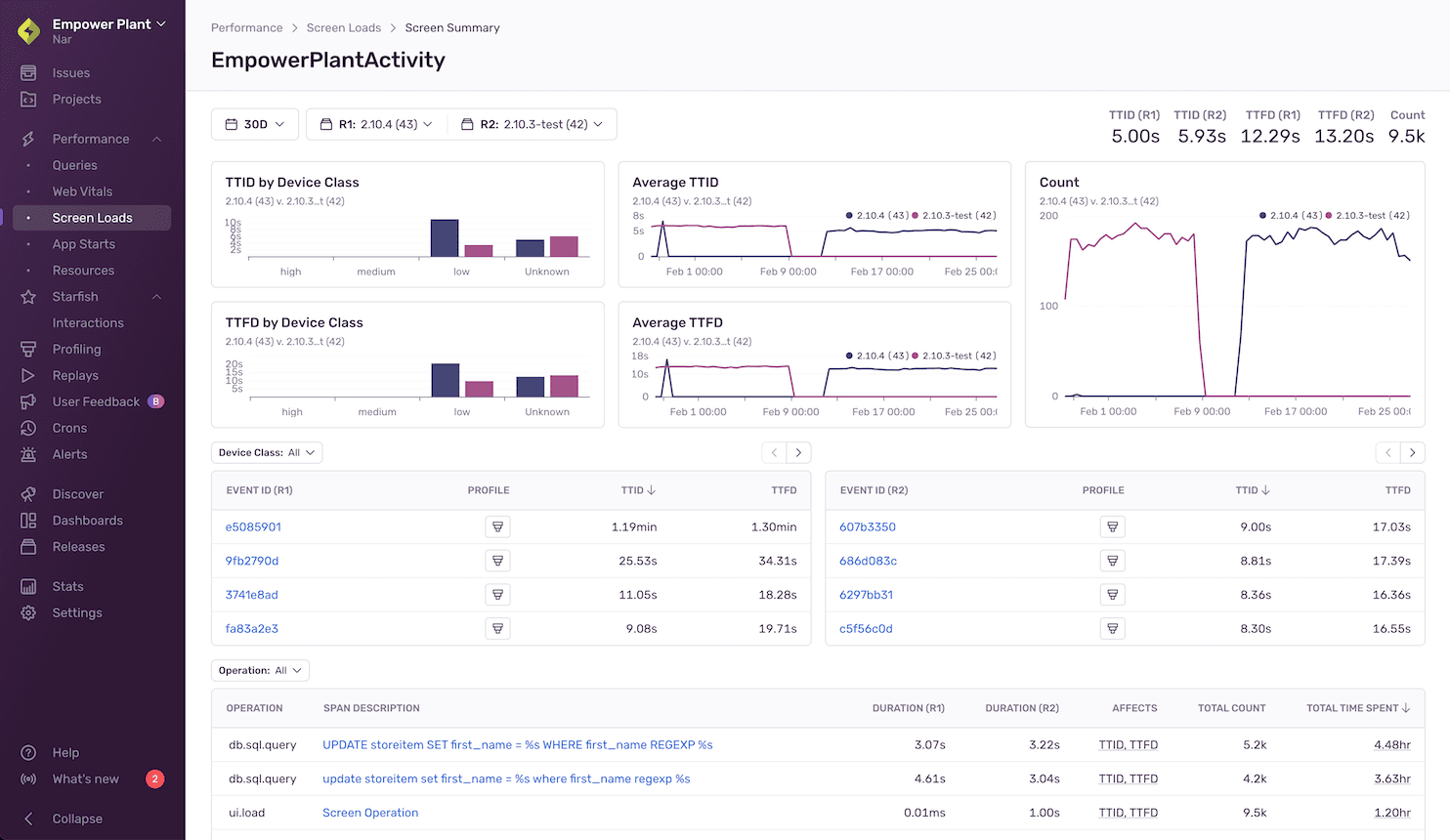

Example of Screen Summary

To get additional information about any of your application's screens, click on them to get to the Screen Summary page. Here, you’ll see a breakdown of TTID and TTFD values broken out by device class (high, medium, low, or unknown), across your selected releases. This will help you understand how users with different device performance levels are being affected.

The Screen Summary page also shows the average TTID, average TTFD, and Count (the number of times a screen has been called) - broken out by release.

To see slow TTID and TTFD events and profiles for each release broken out by specific device class, use the “Device Class” filter at the top of the table.

At the bottom of the page, you’ll see a table of spans that occurred during screen load, sorted by the most time your screen spent in that span. Here, you’ll be able to:

  • Spot span regressions by comparing the average duration of each span across your two releases of choice.

  • Find the slowest spans in the release you’re interested in by looking at average span duration.

  • See which spans occur most frequently by looking at “Count”. (This might help you identify excessive io calls or repeated work that might be occurring during screen load.)

Eligible span operations:

  • file.read
  • file.write
  • ui.load
  • http.client
  • db
  • db.sql.query
  • db.sql.transaction

If spans end before TTID or TTFD, there's a chance they could be affecting their respective metrics. They're tagged in Sentry and can be viewed on the Screen Summary page. But just because a span has been identified as TTID or TTFD-affecting, it doesn't necessarily mean it's the culprit. This information is an approximation and should be used to find potentially problematic spans on an aggregate level so you can narrow down the scope of spans you need to investigate.

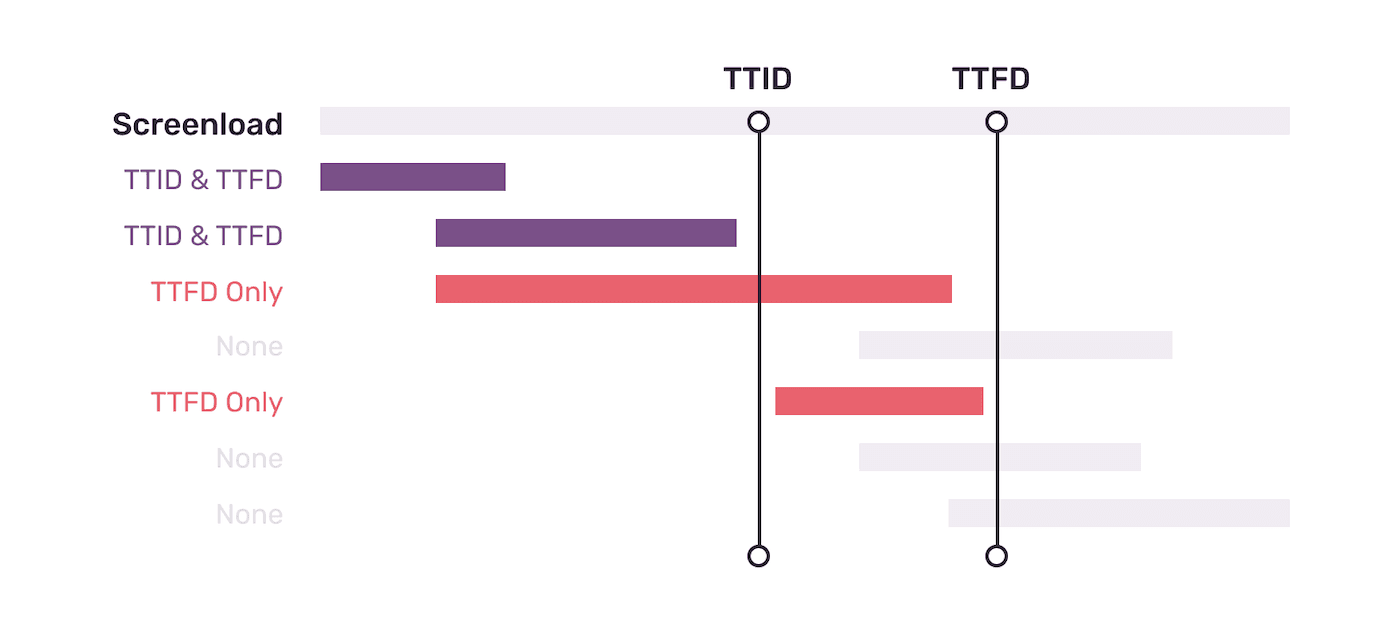

TTID and TTFD Affecting Spans

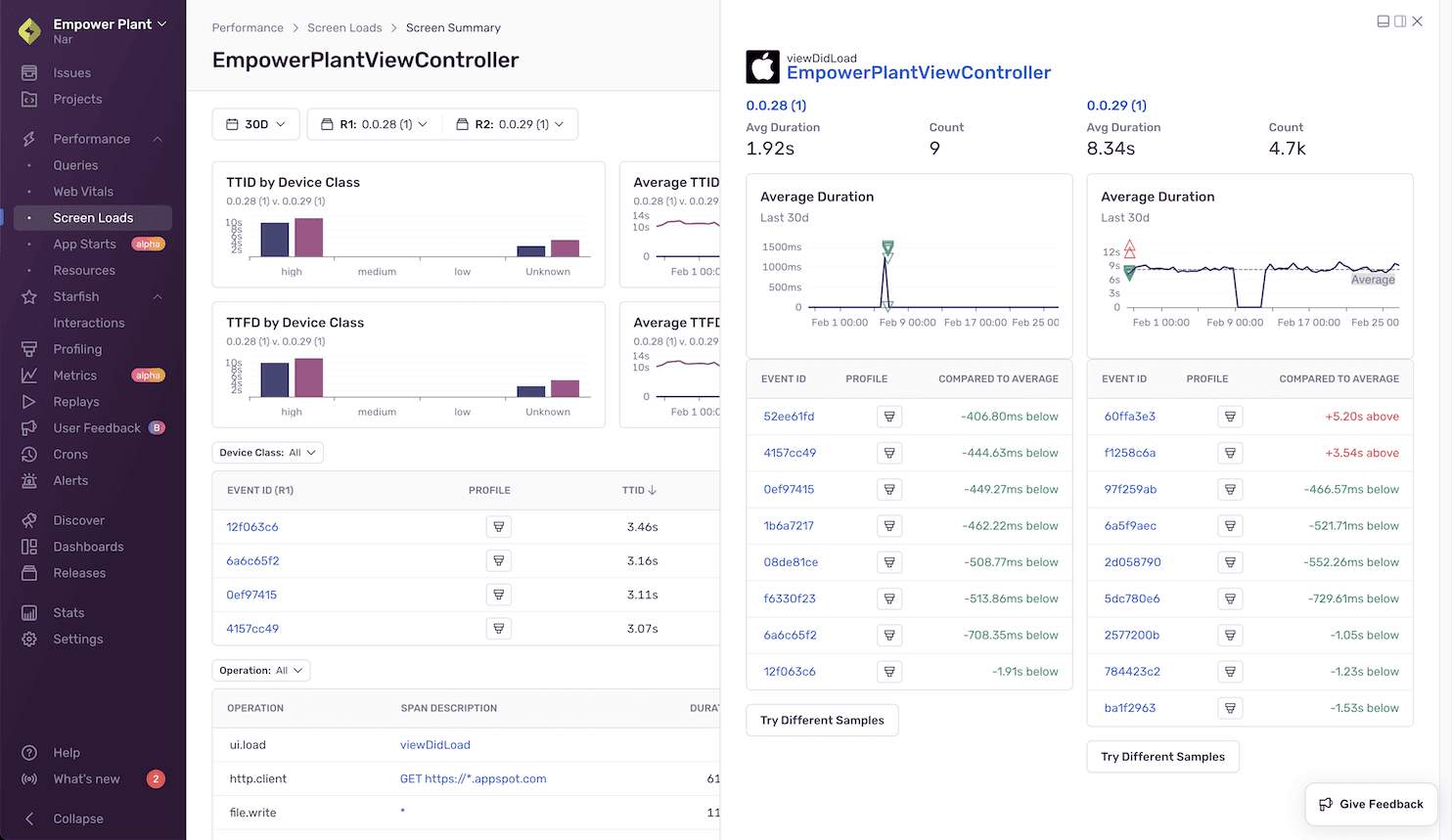

Example of Span Detail View

Clicking on a span description opens up a side panel that lets you see span details, including the average duration and count for that span, in each of the releases you’ve selected.

In the table below, you’ll see a list of sampled events and profiles (if they exist). By comparing the two, you’ll be able to see how much the duration of the span you’re looking at deviates from average spans in each of the two releases you’ve selected.

Sentry automatically identifies sample events to help you investigate performance problems. (They’re shown as triangles in the “Average Duration” graph.) To give you an accurate picture, a range of faster than average, slower than average, and average span durations are sampled across the whole time period you’ve selected.

You can use the sample list to drill down to and compare fast, average, and slow events of interest within a given screen.

Clicking on a sample event will take you into either the query's span details within the span waterfall of the Trace Details page or the profile icon to see the flamegraph for the event. To get different event samples, click the "Try Different Samples" button.
